Actuators, Rotary actuator, small lockable, Ø 39 mm
Black
Designation plate: I - 0 - II
Number of switching positions: 3
Lockable in: One pos. with one lock
Front panel mounting
Switching function: Latching / Latching / Latching
Silicone-free: No, Mounting: Thread type, Zone 1, 2, 21, 22
- Product Type: 8602C3-727-S-M03-03-E03
- Art. No.: 244653
On request
Technical data
General
| MY R. STAHL | 8602A |
| Product variant |
Rotary actuator, small, lockable BG727 |
| Product Type | 8602C3-727-S-M03-03-E03 |
| Product description | Rotary actuator, small lockable |
| Highlights | Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, twin pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer bezel and indicator lamp bezelOne axial actuator can actuate up to four Series 8082 contact elementsKey-operated switches and rotary switches codable at any time as "latching/spring return" or "key not removable" |
| Functional Description | Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN 60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series.The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available. |
| Description |

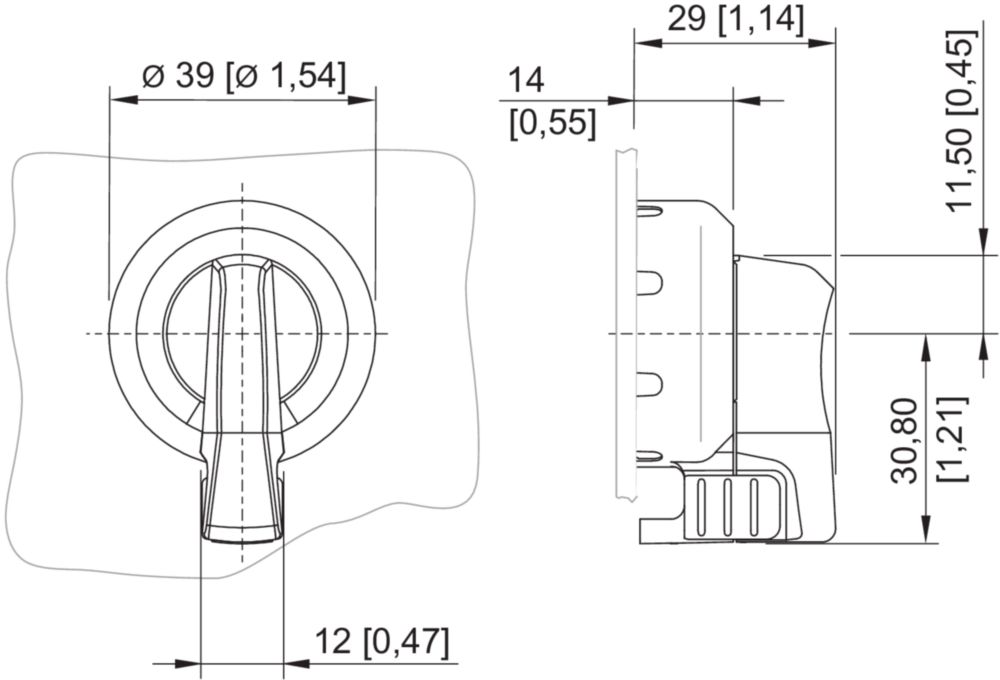

Ø 39 mm Black Designation plate: I - 0 - II Number of switching positions: 3 Lockable in: One pos. with one lock Front panel mounting Switching function: Latching / Latching / Latching Silicone-free: No |
Explosion Protection
Ambient Conditions
Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Actuators - 8602/3 - de-DE | Product Overview |
 |
|
| Actuators - 8602/3 - en-GB | Product Overview |
 |
|
| Actuators - 8602/3 - es-ES | Product Overview |
 |
|
| Actuators - 8602/3 - fr-FR | Product Overview |
 |
|
| Rotary actuator, small lockable - 8602C3-727-S-M03-03-E03 - 244653 - de-DE | Single Data Sheet |
|
|
| Rotary actuator, small lockable - 8602C3-727-S-M03-03-E03 - 244653 - en-GB | Single Data Sheet |
|
|
| Rotary actuator, small lockable - 8602C3-727-S-M03-03-E03 - 244653 - es-ES | Single Data Sheet |
|
|
| Rotary actuator, small lockable - 8602C3-727-S-M03-03-E03 - 244653 - fr-FR | Single Data Sheet |
|
